NEXT GEAR ATF DX III LG

Technical Documents
Technical Data Sheet

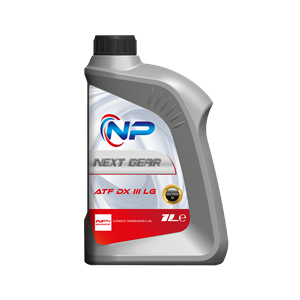

NEXT GEAR ATF DX III LG

NEXT GEAR ATF DX III LG, automatic transmission oil developed to meet the needs of today’s electronically controlled transmission systems where challenging conditions increased such as high operation temperatures. Suitable for use in automatic transmission, electronically controlled transmissions and hydraulic steering systems of passenger and commercial vehicles requiring oils which meet the GM Dexron IIIG and Ford Mercon specifications. It can also be used in hydraulic power systems when recommended by the equipment manufacturer

FEATURES AND BENEFITS

  • Extends the life of the automatic transmission with its superior additives preventing rust, corrosion and oxidation.
  • Minimizes friction in wide operating temperature ranges, dissipates heat, provides excellent operation in gear changes.
  • Maximizes engine manufacturers' expectations with electronic control and superior power transmission.

THE MEET SPECIFICATIONS AND APPROVALS



TYPICAL PROPERTIES

TEST UNIT  METOD TYPICAL VALUES
Density ,@ 15 ⁰C g/cm 3 ASTM 4052 0.853
K. Viscosity,@ 100 ⁰C cSt ASTM D 445 5.8-9.7
Viscosity Index   ASTM D 2270 170
Flash Point ⁰C ASTM D 92 210
Pour Point ⁰C ASTM D 97 -42

* The above values may vary slightly according to production.
